In general terms, throughput is the rate of production or the rate at which something can be processed.
When used in the context of communication networks, such as Ethernet or packet radio, throughput or network throughput is the rate of successful message delivery over a communication channel. The data these messages belong to may be delivered over a physical or logical link, or it can pass through a certain network node. Throughput is usually measured in bits per second (bit/s or bps), and sometimes in data packets per second (p/s or pps) or data packets per time slot.
The system throughput or aggregate throughput is the sum of the data rates that are delivered to all terminals in a network. Throughput is essentially synonymous to digital bandwidth consumption; it can be analyzed mathematically by applying the queueing theory, where the load in packets per time unit is denoted as the arrival rate (?), and the throughput, in packets per time unit, is denoted as the departure rate (?).
The throughput of a communication system may be affected by various factors, including the limitations of underlying analog physical medium, available processing power of the system components, and end-user behavior. When various protocol overheads are taken into account, useful rate of the transferred data can be significantly lower than the maximum achievable throughput; the useful part is usually referred to as goodput.
See also: Peak information rate and Asymptotic throughput
Users of telecommunications devices, systems designers, and researchers into communication theory are often interested in knowing the expected performance of a system. From a user perspective, this is often phrased as either "which device will get my data there most effectively for my needs?", or "which device will deliver the most data per unit cost?". Systems designers are often interested in selecting the most effective architecture or design constraints for a system, which drive its final performance. In most cases, the benchmark of what a system is capable of, or its "maximum performance" is what the user or designer is interested in. When examining throughput, the term maximum throughput is frequently used where end-user maximum throughput tests are discussed in detail.
Maximum throughput is essentially synonymous to digital bandwidth capacity.
Four different values have meaning in the context of "maximum throughput", used in comparing the 'upper limit' conceptual performance of multiple systems. They are 'maximum theoretical throughput', 'maximum achievable throughput', and 'peak measured throughput' and 'maximum sustained throughput'. These represent different quantities and care must be taken that the same definitions are used when comparing different 'maximum throughput' values. Comparing throughput values is also dependent on each bit carrying the same amount of information. Data compression can significantly skew throughput calculations, including generating values greater than 100%. If the communication is mediated by several links in series with different bit rates, the maximum throughput of the overall link is lower than or equal to the lowest bit rate. The lowest value link in the series is referred to as the bottleneck.
Maximum theoretical throughput
This number is closely related to the channel capacity of the system, and is the maximum possible quantity of data that can be transmitted under ideal circumstances. In some cases this number is reported as equal to the channel capacity, though this can be deceptive, as only non-packetized systems (asynchronous) technologies can achieve this without data compression. Maximum theoretical throughput is more accurately reported to take into account format and specification overhead with best case assumptions. This number, like the closely related term 'maximum achievable throughput' below, is primarily used as a rough calculated value, such as for determining bounds on possible performance early in a system design phase.
Peak measured throughput

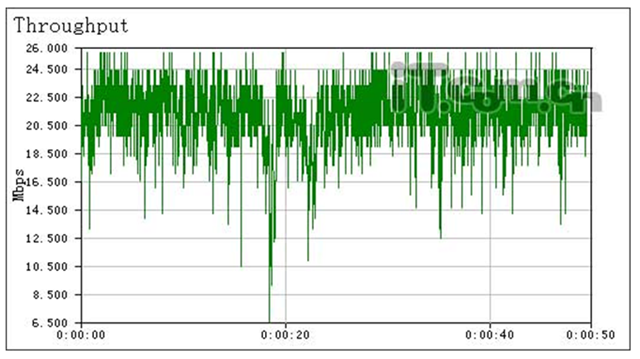

The above values are theoretical or calculated. Peak measured throughput is throughput measured by a real, implemented system, or a simulated system. The value is the throughput measured over a short period of time; mathematically, this is the limit taken with respect to throughput as time approaches zero. This term is synonymous with instantaneous throughput. This number is useful for systems that rely on burst data transmission; however, for systems with a high duty cycle this is less likely to be a useful measure of system performance.
Maximum sustained throughput
This value is the throughput averaged or integrated over a long time (sometimes considered infinity). For high duty cycle networks this is likely to be the most accurate indicator of system performance. The maximum throughput is defined as the asymptotic throughput when the load (the amount of incoming data) is very large. In packet switched systems where the load and the throughput always are equal (where packet loss does not occur), the maximum throughput may be defined as the minimum load in bit/s that causes the delivery time (the latency) to become unstable and increase towards infinity. This value can also be used deceptively in relation to peak measured throughput to conceal packet shaping.
Channel utilization and efficiency
Throughput is sometimes normalized and measured in percentage, but normalization may cause confusion regarding what the percentage is related to. Channel utilization, channel efficiency and packet drop rate in percentage are less ambiguous terms.
The channel efficiency, also known as bandwidth utilization efficiency, is the percentage of the net bitrate (in bit/s) of a digital communication channel that goes to the actually achieved throughput. For example, if the throughput is 70 Mbit/s in a 100 Mbit/s Ethernet connection, the channel efficiency is 70%. In this example, effective 70 Mbit of data are transmitted every second.
Channel utilization is instead a term related to the use of the channel disregarding the throughput. It counts not only with the data bits but also with the overhead that makes use of the channel. The transmission overhead consists of preamble sequences, frame headers and acknowledge packets. The definitions assume a noiseless channel. Otherwise, the throughput would not be only associated to the nature (efficiency) of the protocol but also to retransmissions resultant from quality of the channel. In a simplistic approach, channel efficiency can be equal to channel utilization assuming that acknowledge packets are zero-length and that the communications provider will not see any bandwidth relative to retransmissions or headers. Therefore, certain texts mark a difference between channel utilization and protocol efficiency.
In a point-to-point or point-to-multipoint communication link, where only one terminal is transmitting, the maximum throughput is often equivalent to or very near the physical data rate (the channel capacity), since the channel utilization can be almost 100% in such a network, except for a small inter-frame gap.
For example, the maximum frame size in Ethernet is 1526 bytes: up to 1500 bytes for the payload, eight bytes for the preamble, 14 bytes for the header, and four bytes for the trailer. An additional minimum interframe gap corresponding to 12 bytes is inserted after each frame. This corresponds to a maximum channel utilization of 1526 / (1526 + 12) × 100% = 99.22%, or a maximum channel use of 99.22 Mbit/s inclusive of Ethernet datalink layer protocol overhead in a 100 Mbit/s Ethernet connection. The maximum throughput or channel efficiency is then 1500 / (1526 + 12) = 97.5 Mbit/s, exclusive of the Ethernet protocol overhead.
Factors affecting throughput
The throughput of a communication system will be limited by a huge number of factors. Some of these are described below:
The maximum achievable throughput (the channel capacity) is affected by the bandwidth in hertz and signal-to-noise ratio of the analog physical medium.
Despite the conceptual simplicity of digital information, all electrical signals traveling over wires are analog. The analog limitations of wires or wireless systems inevitably provide an upper bound on the amount of information that can be sent. The dominant equation here is the Shannon-Hartley theorem, and analog limitations of this type can be understood as factors that affect either the analog bandwidth of a signal or as factors that affect the signal to noise ratio. The bandwidth of wired systems can be in fact surprisingly narrow, with the bandwidth of Ethernet wire limited to approximately 1 GHz, and PCB traces limited by a similar amount.
Digital systems refer to the 'knee frequency', the amount of time for the digital voltage to rise from 10% of a nominal digital '0' to a nominal digital '1' or vice versa. The knee frequency is related to the required bandwidth of a channel, and can be related to the 3 db bandwidth of a system by the equation: Where Tr is the 10% to 90% rise time, and K is a constant of proportionality related to the pulse shape, equal to 0.35 for exponential rise, and 0.338 for Gaussian rise.
- RC losses: wires have an inherent resistance, and an inherent capacitance when measured with respect to ground. This leads to effects called parasitic capacitance, causing all wires and cables to act as RC lowpass filters.
- Skin effect: As frequency increases, electric charges migrate to the edges of wires or cable. This reduces the effective cross sectional area available for carrying current, increasing resistance and reducing the signal to noise ratio. For AWG 24 wire (of the type commonly found in Cat 5e cable), the skin effect frequency becomes dominant over the inherent resistivity of the wire at 100 kHz. At 1 GHz the resistivity has increased to 0.1 ohms/inch.
- Termination and ringing: For long wires (wires longer than 1/6 wavelengths can be considered long) must be modeled as transmission lines and take termination into account. Unless this is done, reflected signals will travel back and forth across the wire, positively or negatively interfering with the information-carrying signal.
- Wireless Channel Effects: For wireless systems, all of the effects associated with wireless transmission limit the SNR and bandwidth of the received signal, and therefore the maximum number of bits that can be sent.
IC hardware considerations
Computational systems have finite processing power, and can drive finite current. Limited current drive capability can limit the effective signal to noise ratio for high capacitance links.
Large data loads that require processing impose data processing requirements on hardware (such as routers). For example, a gateway router supporting a populated class B subnet, handling 10 x 100 Mbit/s Ethernet channels, must examine 16 bits of address to determine the destination port for each packet. This translates into 81913 packets per second (assuming maximum data payload per packet) with a table of 2^16 addresses this requires the router to be able to perform 5.368 billion lookup operations per second. In a worse case scenario, where the payloads of each Ethernet packet are reduced to 100 bytes, this number of operations per second jumps to 520 billion. This router would require a multi-teraflop processing core to be able to handle such a load.
- CSMA/CD and CSMA/CA "backoff" waiting time and frame retransmissions after detected collisions. This may occur in Ethernet bus networks and hub networks, as well as in wireless networks.
- flow control, for example in the Transmission Control Protocol (TCP) protocol, affects the throughput if the bandwidth-delay product is larger than the TCP window, i.e. the buffer size. In that case the sending computer must wait for acknowledgement of the data packets before it can send more packets.
- TCP congestion avoidance controls the data rate. So called "slow start" occurs in the beginning of a file transfer, and after packet drops caused by router congestion or bit errors in for example wireless links.
Ensuring that multiple users can harmoniously share a single communications link requires some kind of equitable sharing of the link. If a bottle neck communication link offering data rate R is shared by "N" active users (with at least one data packet in queue), every user typically achieves a throughput of approximately R/N, if fair queuing best-effort communication is assumed.
- Packet loss due to Network congestion. Packets may be dropped in switches and routers when the packet queues are full due to congestion.
- Packet loss due to bit errors.
- Scheduling algorithms in routers and switches. If fair queuing is not provided, users that send large packets will get higher bandwidth. Some users may be prioritized in a weighted fair queuing (WFQ) algorithm if differentiated or guaranteed quality of service (QoS) is provided.
- In some communications systems, such as satellite networks, only a finite number of channels may be available to a given user at a given time. Channels are assigned either through preassignment or through Demand Assigned Multiple Access (DAMA). In these cases, throughput is quantized per channel, and unused capacity on partially utilized channels is lost..
Goodput and overhead
Main article: Goodput
The maximum throughput is often an unreliable measurement of perceived bandwidth, for example the file transmission data rate in bits per seconds. As pointed out above, the achieved throughput is often lower than the maximum throughput. Also, the protocol overhead affects the perceived bandwidth. The throughput is not a well-defined metric when it comes to how to deal with protocol overhead. It is typically measured at a reference point below the network layer and above the physical layer. The most simple definition is the number of bits per second that are physically delivered. A typical example where this definition is practiced is an Ethernet network. In this case the maximum throughput is the gross bitrate or raw bitrate.
However, in schemes that include forward error correction codes (channel coding), the redundant error code is normally excluded from the throughput. An example in modem communication, where the throughput typically is measured in the interface between the Point-to-Point Protocol (PPP) and the circuit switched modem connection. In this case the maximum throughput is often called net bitrate or useful bitrate.
To determine the actual data rate of a network or connection, the "goodput" measurement definition may be used. For example in file transmission, the "goodput" corresponds to the file size (in bits) divided by the file transmission time. The "goodput" is the amount of useful information that is delivered per second to the application layer protocol. Dropped packets or packet retransmissions as well as protocol overhead are excluded. Because of that, the "goodput" is lower than the throughput. Technical factors that affect the difference are presented in the "goodput" article.
Other uses of throughput for data
Often, a block in a data flow diagram has a single input and a single output, and operate on discrete packets of information. Examples of such blocks are FFT modules or binary multipliers. Because the units of throughput are the reciprocal of the unit for propagation delay, which is 'seconds per message' or 'seconds per output', throughput can be used to relate a computational device performing a dedicated function such as an ASIC or embedded processor to a communications channel, simplifying system analysis.
Wireless and cellular networks
In wireless networks or cellular systems, the system spectral efficiency in bit/s/Hz/area unit, bit/s/Hz/site or bit/s/Hz/cell, is the maximum system throughput (aggregate throughput) divided by the analog bandwidth and some measure of the system coverage area.
Over analog channels
Throughput over analog channels is defined entirely by the modulation scheme, the signal to noise ratio, and the available bandwidth. Since throughput is normally defined in terms of quantified digital data, the term 'throughput' is not normally used; the term 'bandwidth' is more often used instead.
