A **transverse mode** of a beam of electromagnetic radiation is a particular electromagnetic field pattern of radiation measured in a plane perpendicular (i.e., transverse) to the propagation direction of the beam. Transverse modes occur in radio waves and microwaves confined to a waveguide, and also in light waves in an optical fiber and in a laser's optical resonator.

Transverse modes occur because of boundary conditions imposed on the wave by the waveguide. For example, a radio wave in a hollow metal waveguide must have zero tangential electric field amplitude at the walls of the waveguide, so the transverse pattern of the electric field of waves is restricted to those that fit between the walls. For this reason, the modes supported by a waveguide are quantized. The allowed modes can be found by solving Maxwell's equations for the boundary conditions of a given waveguide.

## Types of modes

Unguided electromagnetic waves in free space, or in a bulk isotropic dielectric, can be described as a superposition of plane waves; these can be described as TEM modes as defined below.

However in any sort of waveguide where boundary conditions are imposed by a physical structure, a wave of a particular frequency can be described in terms of a transverse mode (or superposition of such modes). These modes generally follow different propagation constants. When two or more modes have an identical propagation constant along the waveguide, then there is more than one modal decomposition possible in order to describe a wave with that propagation constant (for instance, a non-central Gaussian laser mode can be equivalently described as a superposition of Hermite-Gaussian modes or Laguerre-Gaussian modes which are described below).

Modes in waveguides can be further classified as follows:

*Transverse electromagnetic*(*TEM*)*modes*: neither electric nor magnetic field in the direction of propagation.*Transverse electric*(*TE*)*modes*: no electric field in the direction of propagation. These are sometimes called*H modes*because there is only a magnetic field along the direction of propagation (*H*is the conventional symbol for magnetic field).*Transverse magnetic*(*TM*)*modes*: no magnetic field in the direction of propagation. These are sometimes called*E modes*because there is only an electric field along the direction of propagation.*Hybrid modes*: non-zero electric and magnetic fields in the direction of propagation.

Hollow metallic waveguides filled with a homogeneous, isotropic material (usually air) support TE and TM modes but not the TEM mode. In coaxial cable energy is normally transported in the fundamental TEM mode. The TEM mode is also usually assumed for most other electrical conductor line formats as well. This is mostly an accurate assumption, but a major exception is microstrip which has a significant longitudinal component to the propagated wave due to the inhomogeneity at the boundary of the dielectric substrate below the conductor and the air above it. In an optical fiber or other dielectric waveguide, modes are generally of the hybrid type.

In rectangular waveguides, rectangular mode numbers are designated by two suffix numbers attached to the mode type, such as TE_{mn} or TM_{mn}, where *m* is the number of half-wave patterns across the width of the waveguide and *n* is the number of half-wave patterns across the height of the waveguide. In circular waveguides, circular modes exist and here *m* is the number of full-wave patterns along the circumference and *n* is the number of half-wave patterns along the diameter.

## Laser modes

Cylindrical transverse mode patterns TEM(pl)

In a laser with cylindrical symmetry, the transverse mode patterns are described by a combination of a Gaussian beam profile with a Laguerre polynomial. The modes are denoted TEM_{pl} where *p* and *l* are integers labeling the radial and angular mode orders, respectively. The intensity at a point *r*,? (in polar coordinates) from the centre of the mode is given by:

where ? = 2*r*^{2}/*w*^{2}, and *L _{p}^{l}* is the associated Laguerre polynomial of order

*p*and index

*l*.

*w*is the spot size of the mode corresponding to the Gaussian beam radius.

With *p*=*l*=0, the TEM_{00} mode is the lowest order, or fundamental transverse mode of the laser resonator and has the same form as a Gaussian beam. The pattern has a single lobe, and has a constant phase across the mode. Modes with increasing *p* show concentric rings of intensity, and modes with increasing *l* show angularly distributed lobes. In general there are 2*l*(*p*+1) spots in the mode pattern (except for *l*=0). The TEM_{0i*} mode, the so-called *doughnut mode*, is a special case consisting of a superposition of two TEM_{0i} modes (i=1,2,3), rotated 360°/4i with respect to one another.

The overall size of the mode is determined by the Gaussian beam radius *w*, and this may increase or decrease with the propagation of the beam, however the modes preserve their general shape during propagation. Higher order modes are relatively larger compared to the TEM_{00} mode, and thus the fundamental Gaussian mode of a laser may be selected by placing an appropriately sized aperture in the laser cavity.

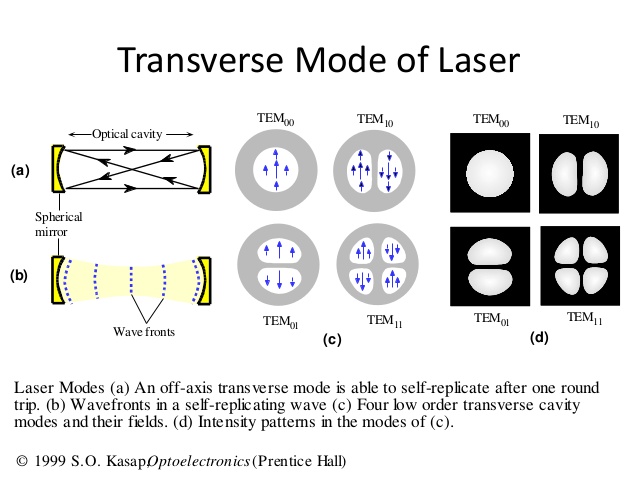

In many lasers, the symmetry of the optical resonator is restricted by polarizing elements such as Brewster's angle windows. In these lasers, transverse modes with rectangular symmetry are formed. These modes are designated TEM_{mn} with *m* and *n* being the horizontal and vertical orders of the pattern. The electric field pattern at a point (*x*,*y*,*z*) for a beam propagating along the *z*-axis is given by

where , , , and are the waist, spot size, radius of curvature, and Gouy phase shift as given for a Gaussian beam; is a normalization constant; and is the *k*^{th} physicist's Hermite polynomial. The corresponding intensity pattern is

Rectangular transverse mode patterns TEM(mn)

The TEM_{00} mode corresponds to exactly the same fundamental mode as in the cylindrical geometry. Modes with increasing *m* and *n* show lobes appearing in the horizontal and vertical directions, with in general (*m* + 1)(*n* + 1) lobes present in the pattern. As before, higher-order modes have a larger spatial extent than the 00 mode.

The phase of each lobe of a TEM_{mn} is offset by ? radians with respect to its horizontal or vertical neighbours. This is equivalent to the polarization of each lobe being flipped in direction.

The overall intensity profile of a laser's output may be made up from the superposition of any of the allowed transverse modes of the laser's cavity, though often it is desirable to operate only on the fundamental mode.

## Modes in an optical fiber

See also: Equilibrium mode distribution, Mode volume, Mode scrambler and Cladding mode

The number of modes in an optical fiber distinguishes multi-mode optical fiber from single-mode optical fiber. To determine the number of modes in a step-index fiber, the V number needs to be determined: where is the wavenumber, is the fiber's core radius, and and are the refractive indices of the core and cladding, respectively. Fiber with a V-parameter of less than 2.405 only supports the fundamental mode (a hybrid mode), and is therefore a single-mode fiber whereas fiber with a higher V-parameter has multiple modes.

Decomposition of field distributions into modes is useful because a large number of field amplitudes readings can be simplified into a much smaller number of mode amplitudes. Because these modes change over time according to a simple set of rules, it is also possible to anticipate future behavior of the field distribution. These simplifications of complex field distributions ease the signal processing requirements of fiber-optic communication systems.

The modes in typical low refractive index contrast fibers are usually referred to as *LP* (linear polarization) modes, which refers to a scalar approximation for the field solution, treating it as if it contains only one transverse field component.
