Digital Video Broadcasting (DVB) is a suite of internationally accepted open standards for digital television. DVB standards are maintained by the DVB Project, an international industry consortium with more than 270 members, and are published by a Joint Technical Committee (JTC) of the European Telecommunications Standards Institute (ETSI), European Committee for Electrotechnical Standardization (CENELEC) and European Broadcasting Union (EBU). The interaction of the DVB sub-standards is described in the DVB Cookbook. Many aspects of DVB are patented, including elements of the MPEG video coding and audio coding.
DVB systems distribute data using a variety of approaches, including:
- Satellite: DVB-S, DVB-S2 and DVB-SH
- DVB-SMATV for distribution via SMATV
- Cable: DVB-C, DVB-C2
- Terrestrial television: DVB-T, DVB-T2
- Digital terrestrial television for handhelds: DVB-H, DVB-SH
- Microwave: using DTT (DVB-MT), the MMDS (DVB-MC), and/or MVDS standards (DVB-MS)
These standards define the physical layer and data link layer of the distribution system. Devices interact with the physical layer via a synchronous parallel interface (SPI), synchronous serial interface (SSI), or asynchronous serial interface (ASI). All data is transmitted in MPEG transport streams with some additional constraints (DVB-MPEG). A standard for temporally-compressed distribution to mobile devices (DVB-H) was published in November 2004.
These distribution systems differ mainly in the modulation schemes used and error correcting codes used, due to the different technical constraints. DVB-S (SHF) uses QPSK, 8-PSK or 16-QAM. DVB-S2 uses QPSK, 8-PSK, 16-APSK or 32-APSK, at the broadcasters decision. QPSK and 8-PSK are the only versions regularly used. DVB-C (VHF/UHF) uses QAM: 16-QAM, 32-QAM, 64-QAM, 128-QAM or 256-QAM. Lastly, DVB-T (VHF/UHF) uses 16-QAM or 64-QAM (or QPSK) in combination with (C)OFDM and can support hierarchical modulation.
The DVB-T2 specification was approved by the DVB Steering Board in June 2008 and sent to ETSI for adoption as a formal standard. ETSI adopted the standard on 9 September 2009.
The DVB-T2 standard gives more robust TV reception and increases the possible bit rate by over 30% for single transmitters (as in the UK) and should increase the max. bit rate by over 50% in large single-frequency networks (as in Germany, Sweden).
DVB has established a 3D TV group (CM-3DTV) to identify "what kind of 3D-TV solution does the market want and need, and how can DVB play an active part in the creation of that solution?". The CM-3DTV group held a DVB 3D-TV Kick-off Workshop in Geneva on 25 January 2010, followed by the first CM-3DTV meeting the next day. DVB now defines a new standard for 3D video broadcast: DVB 3D-TV.
Modes and features of latest DVB-x2 system standards in comparison:
|Input Interface||Multiple Transport Stream and Generic Stream Encapsulation (GSE)||Multiple Transport Stream and Generic Stream Encapsulation (GSE)||Multiple Transport Stream and Generic Stream Encapsulation (GSE)|
|Modes||Variable Coding & Modulation and Adaptive Coding & Modulation||Variable Coding & Modulation||Variable Coding & Modulation and Adaptive Coding & Modulation|
|FEC||LDPC + BCH 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10||LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6||LDPC + BCH 1/2, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10|
|Modulation||Single Carrier QPSK with Multiple Streams||OFDM||absolute OFDM|
|Modulation Schemes||QPSK, 8-PSK, 16-APSK, 32-APSK||QPSK, 16-QAM, 64-QAM, 256-QAM||16- to 4096-QAM|
|Guard Interval||Not Applicable||1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128||1/64 or 1/128|
|Fourier transform size||Not Applicable||1k, 2k, 4k, 8k, 16k, 32k DFT||4k Inverse FFT|
|Interleaving||Bit-Interleaving||Bit- Time- and Frequency-Interleaving||Bit- Time- and Frequency-Interleaving|
|Pilots||Pilot symbols||Scattered and Continual Pilots||Scattered and Continual Pilots|
Besides digital audio and digital video transmission, DVB also defines data connections (DVB-DATA - EN 301 192) with return channels (DVB-RC) for several media (DECT, GSM, PSTN/ISDN, satellite etc.) and protocols (DVB-IPTV: Internet Protocol; DVB-NPI: network protocol independent).
Older technologies such as teletext (DVB-TXT) and vertical blanking interval data (DVB-VBI) are also supported by the standards to ease conversion. However, for many applications more advanced alternatives like DVB-SUB for subtitling are available.
Encryption and metadata
The conditional access system (DVB-CA) defines a Common Scrambling Algorithm (DVB-CSA) and a physical Common Interface (DVB-CI) for accessing scrambled content. DVB-CA providers develop their wholly proprietary conditional access systems with reference to these specifications. Multiple simultaneous CA systems can be assigned to a scrambled DVB program stream providing operational and commercial flexibility for the service provider.
DVB is also developing a Content Protection and Copy Management system for protecting content after it has been received (DVB-CPCM), which is intended to allow flexible use of recorded content on a home network or beyond, while preventing unconstrained sharing on the Internet. DVB-CPCM has been the source of much controversy in the popular press and It is said that CPCM is the DVB's answer to the failed American Broadcast Flag.
DVB transports include metadata called Service Information (DVB-SI, ETSI EN 300 468, ETSI TR 101 211) that links the various elementary streams into coherent programs and provides human-readable descriptions for electronic program guides as well as for automatic searching and filtering. The dating system used with this metadata suffers from a year 2038 problem in which due to the limited 16 bits and modified Julian day offset used will cause an overflow issue similar to the year 2000 problem. By comparison, the rival DigiCipher 2 based ATSC system will not have this issue until 2048 due in part to 32 bits being used.
Recently, DVB has adopted a profile of the metadata defined by the TV-Anytime Forum (DVB-TVA, ETSI TS 102323). This is an XML Schema based technology and the DVB profile is tailored for enhanced Personal Digital Recorders. DVB lately also started an activity to develop a service for IPTV (DVB-IPI, ETSI TR 102033, ETSI TS 102034, ETSI TS 102814) which also includes metadata definitions for a broadband content guide (DVB-BCG, ETSI TS 102 539).
Main article: Interactive television § User Interaction
The DVB Multimedia Home Platform (DVB-MHP) defines a Java-based platform for the development of consumer video system applications. In addition to providing abstractions for many DVB and MPEG-2 concepts, it provides interfaces for other features like network card control, application download, and layered graphics.
Main article: DVB-RCS
DVB has standardised a number of return channels that work together with DVB(-S/T/C) to create bi-directional communication. RCS is short for Return Channel Satellite, and specifies return channels in C, Ku and Ka frequency bands with return bandwidth of up to 2 Mbit/s. DVB-RCT is short for Return Channel Terrestrial, specified by ETSI EN 301958.
DVB-S and DVB-C were ratified in 1994. DVB-T was ratified in early 1997. The first commercial DVB-T broadcasts were performed by the United Kingdom's Digital TV Group in late 1998. In 2003 Berlin, Germany was the first area to completely stop broadcasting analog TV signals. Most European countries are fully covered by digital television and many have switched off PAL/h services.
In Europe, as well as in Australia, South Africa and India, DVB is used throughout. This also holds true for cable and satellite in most Asian, African and many South American countries. Many of these have not yet selected a format for digital terrestrial broadcasts (DTTV) and a few (Canada, El Salvador, Honduras, Mexico, South Korea and the United States) have chosen ATSC instead of DVB-T.
DVB-T broadcasts were launched by the President of Kenya, Mwai Kibaki on 9 December 2009. Broadcasts are using H.264, with the University of Nairobi supplying the decoders. Kenya has also been broadcasting DVB-H since July 2009, available on selected Nokia and ZTE handsets on the Safaricom and other GSM networks.
Since 1995, the pay TV operator DStv used the DVB-S standard to broadcast its services. In 2010 it started a DVB over IP service, and in 2011 it started DStv mobile using the DVB-H standard.
In late 2010, the South African cabinet endorsed a decision by a Southern African Development Community (SADC) task team to adopt the DVB-T2 standard.
In Asia several Standards are under implementation
In Hong Kong, several cable TV operators such as TVB Pay Vision and Cable TV have already started using DVB-S or DVB-C. The government however has adopted the DMB-T/H standard, developed in mainland China, for its digital terrestrial broadcasting services which has started since 31 December 2007.
On 17 March 2009, DVB-H and DVB-T H.264/AAC broadcasting started in Tehran. DVB-T broadcasting now available in other cities like: Isfahan, Mashhad, Shiraz, Qom, Tabriz and Rasht.
Indian government announced the discontinuation of analog signals in the four metropolitan cities of Mumbai, Delhi, Kolkata by 31 March 2012 and for tier II cities such as Bangalore. by 31 March 2013. Most houses are now required to use a digital set top box to watch cable television in several cities in India. An example set top box is a Cisco DVB box provided by one of the digital television providers.
DVB-T broadcasts using H.264 commenced in Israel on 1 June 2009 with the broadcast trial and the full broadcast began on 2 August 2009. Analog broadcasts were originally planned to end in 18 months after the launch, but analog broadcasts were switched off on 31 March 2011 instead.
During 2010, DVB-T broadcasts have become widely available in most of Israel and an EPG was added to the broadcasts.
With the exception of SKY PerfecTV!, Japan uses different formats in all areas (ISDB), which are however quite similar to their DVB counterparts. SkyPerfect is a satellite provider using DVB on its 124 and 128 degrees east satellites. Its satellite at 110 degrees east does not use DVB, however.
In Malaysia, a new pay television station MiTV began service in September 2005 using DVB-IPTV technology while lone satellite programming provider ASTRO has been transmitting in DVB-S since its inception in 1996. Free-to-air DVB-T trials began in late 2006 with a simulcast of both TV1 and TV2 plus a new channel called RTM3/RTMi. In April 2007, RTM announced that the outcome of the test is favourable and expects DVB-T to go public by the end of 2007. However, the system did not go public as planned. As of 2008, the trial digital line-up has expanded to include a music television channel called Muzik Aktif, and a sports channel called Arena, with a news channel called Berita Aktif planned for inclusion in the extended trials soon. Also, high definition trials were performed during the Beijing Olympics and the outcome was also favourable. It was announced that the system would go public in 2009.
In 2009, MiTV closed down, changed its name to U-Television and announced that it was changing to scrambled DVB-T upon relaunch instead of the DVB-IPTV system used prior to shutting down. However, RTM's digital network again did not go public, although around this time TVs that are first-generation DVB-T capable went on sale. The government has since announced that they will be deploying DVB-T2 instead in stages starting in mid-2015 and analog shutoff is has been delayed to 2017.
In the Philippines, DVB-S and DVB-S2 are the two broadcast standards currently used by satellite companies, while DVB-C is also used by some cable companies. The government adopted DVB-T in November 2006 for digital terrestrial broadcasting but a year later, it considered other standards to replace DVB-T. The country has chosen the ISDB-T system instead of DVB-T.
In Taiwan, some digital cable television systems use DVB-C, though most customers still use analog NTSC cable television. The government planned adopting ATSC or the Japanese ISDB-T standard as NTSC's replacement. However, the country has chosen the European DVB-T system instead. Public Television Service (PTS) and Formosan TV now provided high definition television. The former has a channel called HiHD; the latter uses its HD channel for broadcasting MLB baseball.
Cyprus uses DVB-T with MPEG-4 encoding. Analog transmission stopped on 1 July 2011 for all channels except CyBC 1.
In Denmark, DVB-T replaced the analog transmission system for TV on 1 November 2009. Danish national digital TV transmission has been outsourced to the company Boxer TV A/S (Boxer TV), acting as gatekeeper organization for terrestrial TV transmission in Denmark. However, there are still several free channels from DR.
See also: Television in Finland
DVB-T transmissions were launched on 21 August 2001. The analogue networks continued alongside the digital ones until 1 September 2007, when they were shut down nationwide. Before the analogue switchoff, the terrestrial network had three multiplexes: MUX A, MUX B and MUX C. MUX A contained the channels of the public broadcaster Yleisradio and MUX B was shared between the two commercial broadcasters: MTV3 and Nelonen. MUX C contained channels of various other broadcasters. After the analogue closedown, a fourth multiplex named MUX E was launched. All of the Yleisradio (YLE) channels are broadcast free-to-air, likewise a handful of commercial ones including MTV3, Nelonen, Subtv, JIM, Nelonen Sport, Liv, FOX, TV5 Finland, AVA and Kutonen. There are also several pay channels sold by PlusTV.
See also: Television in Italy
The switch-off from analogue terrestrial network to DVB-T started on 15 October 2008. Analogue broadcast was ended on 4 July 2012 after nearly four years of transition in phases.
In the Netherlands, DVB-S broadcasting started on 1 July 1996, satellite provider MultiChoice (now CanalDigitaal) switched off the analogue service shortly after on 18 August 1996. DVB-T broadcasting started April 2003, and terrestrial analog broadcasting was switched off December 2006. It was initially marketed by Digitenne but later by KPN. Multiplex 1 contains the NPO 1, NPO 2 and NPO 3 national TV channels, and a regional channel. Multiplexes 2~5 have the other encrypted commercial and international channels. Multiplex 1 also broadcasts the radio channels Radio 1, Radio 2, 3 FM, Radio 4, Radio 5, Radio 6, Concertzender, FunX and also a regional channel. As of June 2011, the Dutch DVB-T service had 29 TV channels and 20 radio channels (including free to air channels).
In Norway, DVB-T broadcasting is marketed under RiksTV (encrypted pay channels) and NRK (unencrypted public channels). DVB-T broadcasting via the terrestrial network began in November 2007, and has subsequently been rolled out one part of the country at a time. The Norwegian implementation of DVB-T is different from most others, as it uses H.264 with HE-AAC audio encoding, while most other countries have adapted the less recent MPEG-2 standard. Notably most DVB software for PC has problems with this, though in late 2007 compatible software was released, like DVBViewer using the libfaad2 library. Sony has released several HDTVs (Bravia W3000, X3000, X3500, E4000, V4500, W4000, W4500, X4500) that support Norway's DVB-T implementation without use of a separate set-top box, and Sagem ITD91 HD, Grundig DTR 8720 STBs are others.
Currently, Poland uses the DVB-T standard with MPEG-4 encoding. Analogue broadcast switch-off started on 7 November 2012 and was completed on 23 July 2013.
Portugal follows the DVB-T implementation, using H.264 with AAC audio encoding. It has been live since 29 April 2009 and the switch-off date for all analog signals was on 26 April 2012.
Currently, Russia uses the DVB-T standard with MPEG-4 encoding for the limited experimental broadcasting and cable networks, majority of TV broadcasting still being done in the old analogue SECAM standard. The Ministry of Communication, however, pledged to switch to the DVB-T2 as the transmitting centers are gradually upgraded, and plans to abandon analogue broadcast by 2015, funds permitting. Several pilot broadcasting centers in some regions are already online and simulcasting in DVB-T2 SD and SECAM signal since February 2010, with more to go. Only one channel pack with eight to ten main national radio and TV channels (Channel One, Rossiya 1/2/K/24, NTV, Radio Mayak, Radio Rossii etc.) is available for now, with more planned to be added as the digital TV network is expanded.
See also: Digital terrestrial television in the United Kingdom
In the UK DVB-T has been adopted for broadcast of standard definition terrestrial programming, as well as a single DVB-T2 multiplex for high-definition programming. The UK terminated all analogue terrestrial broadcasts by the end of 2012. The vast majority of channels are available free-to-air through the Freeview service. DVB-T was also used for the now-defunct ONDigital/ITV Digital and Top Up TV service.
All satellite programming (some of which is available free-to-air via Freesat or free-to-view via Freesat from Sky; the remainder requires a subscription to Sky), is broadcast using either DVB-S or DVB-S2.
Subscription-based cable television from Virgin Media uses DVB-C, alongside a limited selection of analogue channels.
In North America, DVB-S is often used in encoding and video compression of digital satellite communications alongside Hughes DSS. Unlike Motorola's DigiCipher 2 standard, DVB has a wider adoption in terms of the number of manufacturers of receivers. Terrestrial digital television broadcasts in Canada, Mexico, El Salvador, Honduras, and the United States use ATSC encoding with 8VSB modulation instead of DVB-T with COFDM.
In New Zealand, DVB broadcasting is marketed under the Freeview brand name. SD MPEG-2 DVB-S broadcasts via satellite began on 2 May 2007 and DVB-T (terrestrial) broadcasts began April 2008 broadcasting in HD H.264 video with HE-AAC audio.

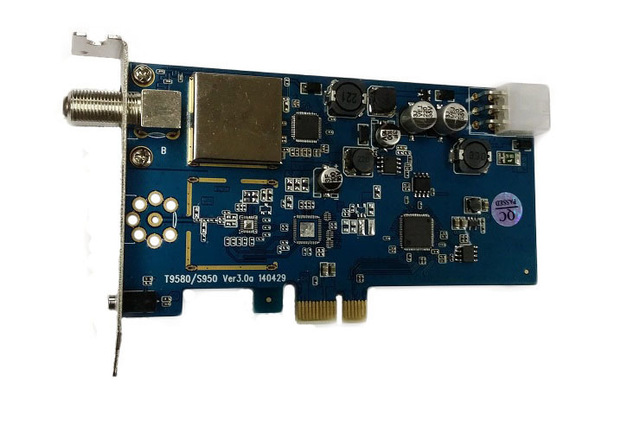

DVB compliant products
Companies that manufacture a product which is compliant to one or more DVB standards have the option of registering a declaration of conformity for that product. Wherever the DVB trademark is used in relation to a product – be it a broadcast, a service, an application or equipment – the product must be registered with the DVB project office.
