Basic Rate Interface

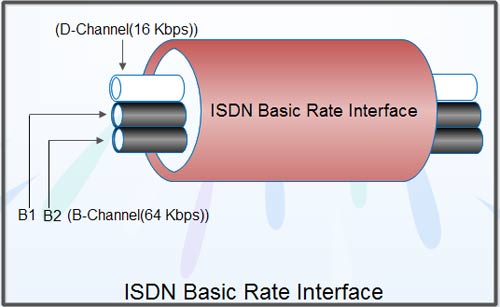

Basic Rate Interface (BRI, 2B+D, 2B1D) or Basic Rate Access is an Integrated Services Digital Network (ISDN) configuration intended primarily for use in subscriber lines similar to those that have long been used for voice-grade telephone service. The BRI configuration provides 2 bearer channels (B channels) at 64 kbit/s each and 1 data channel (D channel) at 16 kbit/s. The B channels are used for voice or user data, and the D channel is used for any combination of data, control/signaling, and X.25 packet networking. The 2 B channels can be aggregated by channel bonding providing a total data rate of 128 kbit/s. The BRI ISDN service is commonly installed for residential or small business service (ISDN PABX) in many countries.

In contrast to the BRI, the Primary Rate Interface (PRI) configuration provides more B channels and operates at a higher bit rate.

Physical interfaces

The BRI is split in two sections: a) in-house cabling (S/T reference point or S-bus) from the ISDN terminal up to the NT and b) transmission from the NT to the central office (U reference point).

  • The in-house part is defined in I.430 produced by the International Telecommunication Union (ITU). The S/T Interface (S0) uses four wires; one pair for the uplink and another pair for the downlink. It offers a full-duplex mode of operation. The I.430 protocol defines 48-bit packets comprising 16 bits from the B1 channel, 16 bits from B2 channel, 4 bits from the D channel, and 12 bits used for synchronization purposes. These packets are sent at a rate of 4 kHz, resulting in a gross bit rate of 192 kbit/s and - giving the data rates listed above - a maximum possible throughput of 144kbit/s. The S0 offers point-to-point or point-to-multipoint operation; Max length: 900m (point-to-point), 300m (point-to-multipoint).
  • The Up Interface uses two wires. The gross bit rate is 160 kbit/s; 144 kbit/s throughput, 12 kbit/s sync and 4 kbit/s maintenance. The signals on the U reference point are encoded by two modulation techniques: 2B1Q in North America, Italy and Switzerland, and 4B3T elsewhere. Depending of the applicable cable length, two varieties are implemented, UpN and Up0. The Uk0 interface uses one wire pair with echo cancellation for the long last mile cable between the telephone exchange and the network terminator. The maximum length of this BRI section is between 4 and 8 km.
