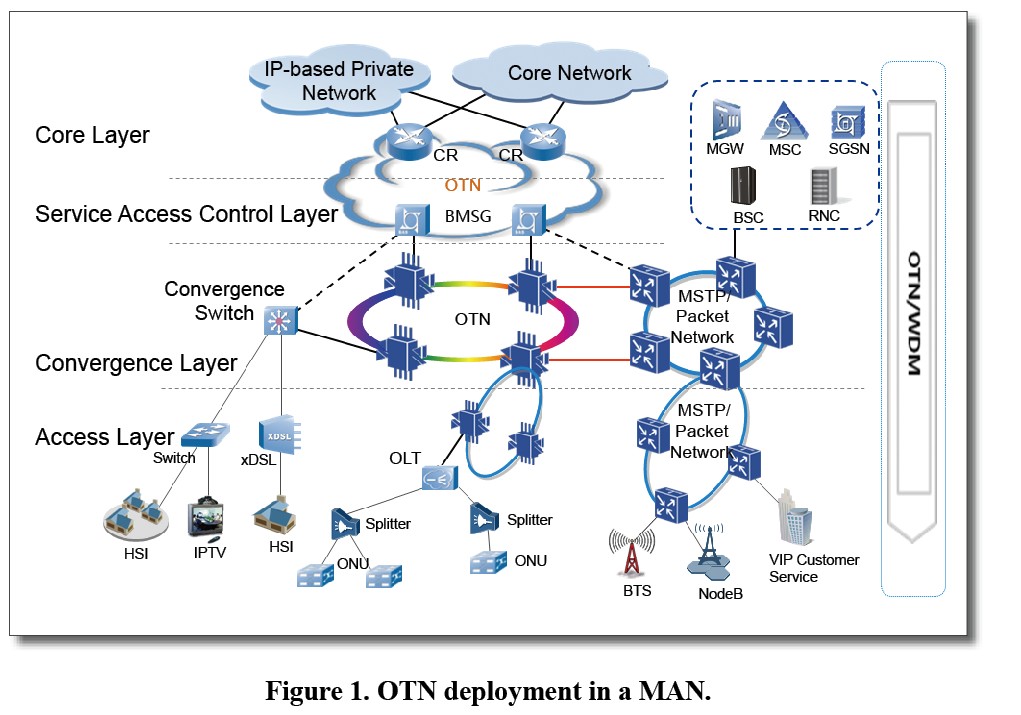

ITU-T defines an Optical Transport Network (OTN) as a set of Optical Network Elements (ONE) connected by optical fiber links, able to provide functionality of transport, multiplexing, switching, management, supervision and survivability of optical channels carrying client signals. An ONE may Re-time, Re-Amplify, Re-shape (3R) but it does not have to be 3R— it can be purely photonic.
Standards
OTN was designed to provide support for optical networking using wavelength-division multiplexing (WDM) unlike its predecessor SONET/SDH.
ITU-T Recommendation G.709 is commonly called Optical Transport Network (OTN) (also called digital wrapper technology or optical channel wrapper). As of December 2009 OTN has standardized the following line rates.
| Signal | Approximate data rate (Gbit/s) | Applications |
|---|---|---|
| OTU1 | 2.66 | Transports SONET OC-48 or synchronous digital hierarchy (SDH) STM-16 signal |
| OTU2 | 10.70 | Transports an OC-192, STM-64 or wide area network (WAN) physical layer (PHY) for 10 Gigabit Ethernet (10GBASE-W) |
| OTU2e | 11.09 | Transports a 10 Gigabit Ethernet local area network (LAN) PHY coming from IP/Ethernet switches and routers at full line rate (10.3 Gbit/s). This is specified in G.Sup43. |
| OTU2f | 11.32 | Transports a 10 Fibre Channel. |
| OTU3 | 43.01 | Transports an OC-768 or STM-256 signal or a 40 Gigabit Ethernet signal. |
| OTU3e2 | 44.58 | Transports up to four OTU2e signals |
| OTU4 | 112 | Transports a 100 Gigabit Ethernet signal |
The OTUk (k=1/2/2e/3/3e2/4) is an information structure into which another information structure called ODUk (k=1/2/2e/3/3e2/4) is mapped. The ODUk signal is the server layer signal for client signals. The following ODUk information structures are defined in ITU-T Recommendation G.709
| Signal | Data Rate (Gbit/s) | Typical Applications |
|---|---|---|
| ODU0 | 1.24416 | Transport of a timing transparent transcoded (compressed) 1000BASE-X signal or a stream of packets (such as Ethernet, MPLS or IP) using Generic Framing Procedure |
| ODU1 | 2.49877512605042 | Transport of two ODU0 signals or a STS-48/STM-16 signal or a stream of packets (such as Ethernet, MPLS or IP) using Generic Framing Procedure. |
| ODU2 | 10.0372739240506 | Transport of up to eight ODU0 signals or up to four ODU1 signals or a STS-192/STM-64 signal or a WAN PHY (10GBASE-W) or a stream of packets (such as Ethernet, MPLS or IP) using Generic Framing Procedure |
| ODU2e | 10.3995253164557 | Transport of a 10 Gigabit Ethernet signal or a timing transparent transcoded (compressed) Fibre Channel 10GFC signal |
| ODU3 | 40.3192189830509 | Transport of up to 32 ODU0 signals or up to 16 ODU1 signals or up to four ODU2 signals or a STS-768/STM-256 signal or a timing transparent transcoded 40 Gigabit Ethernet signal or a stream of packets (such as Ethernet, MPLS or IP) using Generic Framing Procedure |
| ODU3e2 | 41.7859685595012 | Transport of up to four ODU2e signals |
| ODU4 | 104.794445814978 | Transport of up to 80 ODU0 signals or up to 40 ODU1 signals or up to ten ODU2 signals or up to two ODU3 signals or a 100 Gigabit Ethernet signal |
| ODUflex (CBR) | 239?238 x client bit rate | Transport of a constant bitrate signal such as Fibre Channel 8GFC, InfiniBand or Common Public Radio Interface |
| ODUflex (GFP) | any configured rate | Transport of a stream of packets (such as Ethernet, MPLS or IP) using Generic Framing Procedure |
Equipment
At a very high level the typical signals that OTN equipment at the Optical Channel layer processes are:
- OTN
- SONET/SDH
- Ethernet/FibreChannel
- Packets
A few of the key functions performed on these signals are:
- Protocol processing of all the signals . Some of the more complex processes are:
- Forward error correction (FEC) on OTN signals
- Multiplexing and de-multiplexing of OTN signals
- Mapping and de-mapping of non-OTN signals into and out of OTN signals
- Packet processing in conjunction with mapping/de-mapping of packet into and out of OTN signals
Switch fabric
The OTN signals at all data-rates have the same frame structure but the frame period reduces as the data-rate increases. As a result, the Time-Slot Interchange (TSI) technique of implementing SONET/SDH switch fabrics is not directly applicable to OTN switch fabrics. OTN switch fabrics are typically implemented using Packet Switch Fabrics.
FEC Latency
On a point-to-point OTN link there is latency due to forward error correction (FEC) processing.
