Intel’s Omni-Path Network Fabric

For Intel developing Omni-Path solves several goals for the company, many of them unsurprisingly tied closely to Xeon Phi. On the whole, fabric costs as a percentage of total HPC system costs has been going up, which for Intel is a problem on multiple levels. It decreases the amount of the bill of materials spent on Xeon Phi and other Intel hardware, it drives up overall system costs, and it presents a barrier to entry for customers. This has led to Intel to focus on bringing the cost down on fabrics, which in turn has led to the development of Omni-Path.

The biggest focus for Intel as far as costs control go is to work on integration, as over time integration brings down the number of components required and therefore brings down costs as well while increasing reliability. For this reason we will see versions of Knights Landing co-processors launching with on-package Omni-Path capabilities, although not in a full integrated fashion. In this case the company will be installing Omni-Path controllers on to Knights Landing chip packages in an MCM manner, meaning that the Knights Landing silicon itself won’t feature Omni-Path but the chip will, both sharing the PCIe interface. This ultimately sets the stage for future generations of Omni-Path and Xeon Phi by getting vendors and customers used to having it on-chip, with the successive (second) generation finally going fully integrated. The applicability extends to data leaving the Xeon Phi through the fabric without requiring further intra-node data organization.

Meanwhile as not every host will be a Xeon Phi, Intel is also developing PCIe Omni-Path cards as well. The cards will depending on the specific model support one or two Omni-Path ports via either PCIe 3.0 x16 or x8, though you’ll need the x16 card for full 100Gb/sec bandwidth. The TDP on these cards is said to be 8W, with a max power draw of 12W

Along with the host adapters, Intel will also be designing other hardware elements of Omni-Path, such as switches, which will scale up to 48 ports per switch.  The fact that Intel will be offering a 48 port switch is something that they consider to be a feather in their cap for Omni-Path, as larger switches allow for flatter network topology. With similar InfiniBand switches only scaling up to 36 ports per switch, a 48 port switch represents a 33% increase in the number of ports that can be switched. For a theoretical “sweet spot” one-thousand node Omni-Path design then, this would allow every node to be no more than 3 hops from any other node, whereas a topology with 36 nodes would stretch that out to 5 hops. The benefit of fewer hops, besides being fewer switches, is that it reduces the maximum latency for the fabric since any given packet will traverse fewer switches to get to its destination.

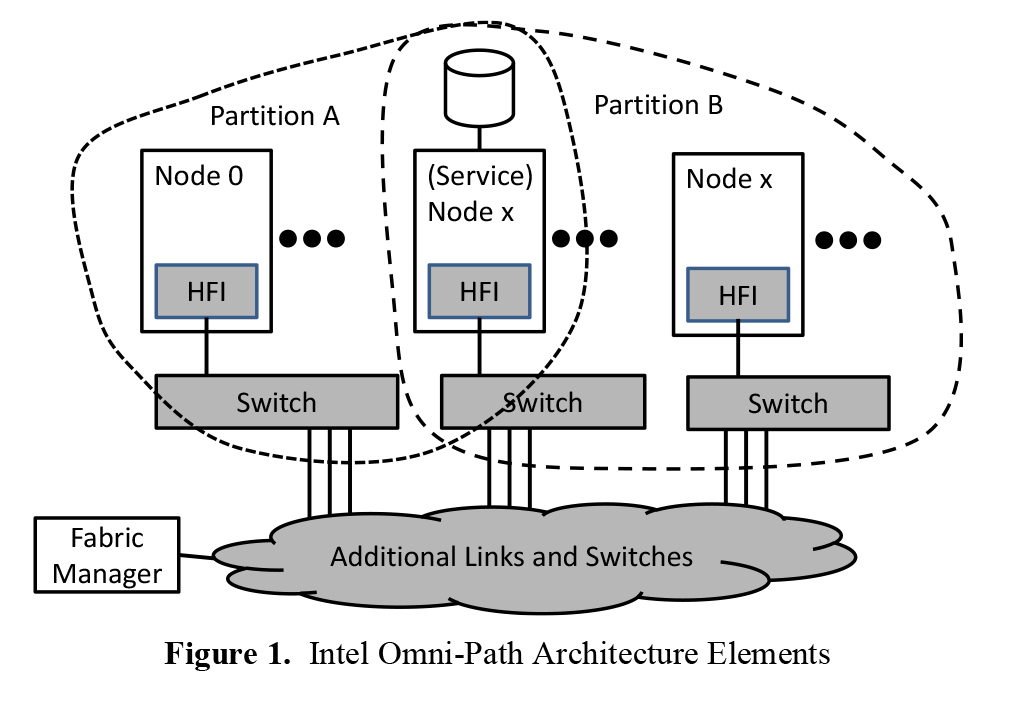

Omni-Path Fabric Architecture

Diving into the fabric architecture itself, for Omni-Path Intel has attempted to prudently develop the architecture in such a way that it will outperform similar technologies (e.g. InfiniBand EDR), but also to do so while controlling costs. A big part of this has been designing the fabric to withstand higher bit error rates, as the greater error tolerances drive up the cost of the fabric, both with regards to equipment cost and the use of more expensive optical cable runs versus cheaper copper cable runs. To that end Intel is shooting for a bit error rate of 1E-12, or roughly a single bit error every 10 seconds when operating at 100Gb/sec.

Surprisingly, to manage these errors Omni-Path doesn’t use any form of error correction such as Forward Error Correction, but instead relies on a simpler CRC/retransmit mechanism. This is based on citing the fact that forward error correction causes a fair bit of latency due to the need to at two different packet levels, and then retransmit any failed packets from end-to-end. Omni-Path by comparison allows re-transmission at the hop-to-hop level, minimising latency and supporting a higher bit-error rate as a result. This means that Omni-Path does need to stop and request a retransmission end-to-end, but for a standard low-level packet error it can request the retransmission from the previous node as soon as it’s discovered, before a packet even moves through the switch to its target node.

Speaking of packets and links, for Omni-Path Intel has devised an interesting method of operating the fabric. Breaking a bit from the traditional 7 layer OSI model, the Omni-Path model essentially has two layers of packets, manifesting itself as an in-between layer of the model. The closest thing to traditional packets offered by Omni-Path is the Fabric Packet (FP), a node-to-node packet type that is generated by higher levels of the stack. However FPs aren’t transmitted as-is, and instead are broken down into what Intel calls the Link Transfer Packet (LTP). The LTP is a smaller link-local packet, and with Intel describing this as a kind of Layer 1.5 packet. It is at this level that retransmission of packets occurs in the event of bit-errors.

Representation from http://infosys.beckhoff.com/

It’s at the LTP layer where most of the real work takes place. The LTPs are 1056 bits in length and contain a combination of data (1024 bits), FLIT type bits (16 bits, 1 for each FLIT), CRC information (14 bits), and what Intel calls virtual lane credit bits (2 bits). On the data side, the 1024 data bits are in turn split up into 16x 64-bit Flow Control Digits (FLITs), which are ultimately the smallest unit of data. As LTPs can contain FLITs from multiple FPs, the FLITs are how data from multiple FPs within a single LTP is kept organized.

Overall the fact that the LTP is 1056 bits in size and contains 1024 bits of data gives the LTP an efficiency equivalent to 64/66b encoding, similar to other fabric standards. Intel uses a bit-scrambler here in order to provide the necessary protection against running disparity without having to use further encoding and padding on top of the LTP. Coupled with this, Intel ever so slightly overclocks the Omni-Path link layer, such that it runs at 25.78125Gbps, which after the overhead of the LTP gives Omni-Path a proper 100Gb/sec of bandwidth at the link layer level.

Getting back to error resilience for a moment then, we can see how error detection and transmission works under this model. The LTPs having their own 14-bit CRC means that a link can request a retransmission should an LTP become corrupt, catching it after just 1056 bits and before an LTP moves on to the next link in a route. Meanwhile, in the unlikely event that an error still makes it through, then the FP error check at the destination node will find the error and trigger a retransmission of the whole FP.

Finally, let’s talk a bit about packet prioritization, via what Intel calls Traffic Flow Optimization. Because LTPs can be composed of data from multiple FPs via the use of FLITs, Omni-Path has a relatively simple method to handle packet prioritization. Higher priority FPs are simply given space on the current LTP, bumping the lower priority FP already in progress, and the lower priority FP can complete whenever it is not being blocked by higher priority traffic. Intel cites this as giving Omni-Path better latency, as higher priority packets have a minimal wait time (a 16-bit FLIT) before being able to assume control of the link. Overall Omni-Path supports 32 priority levels, though Intel expects first-gen setups to use something between 4 and 8.

Closing Thoughts

While the purpose of Intel’s Omni-Path disclosure is in part to help advertise the technology and entice potential customers looking for a 100Gb/sec fabric, Intel does already have some customers lined up for the fabric. The company is telling the press and public that there are already over 100 OEM designs in the pipeline, with bids/contracts on over 100K nodes in total.

Finally, given Omni-Path’s close development alongside Xeon Phi, unsurprisingly the two will be close together in deployment. As disclosed in Intel’s presentation, the company is already sampling OEMs. The first customer deployments are expected in Q4 of this year, with broader availability and rollout to follow in 2016.
