Data Terminal Equipment

Data terminal equipment (DTE) is an end instrument that converts user information into signals or reconverts received signals. These can also be called tail circuits. A DTE device communicates with the data circuit-terminating equipment (DCE). The DTE/DCE classification was introduced by IBM.

V.35 is a high-speed serial interface designed to support both higher data rates and connectivity between DTEs (data-terminal equipment) or DCEs (data-communication equipment) over digital lines.

Two different types of devices are assumed on each end of the interconnecting cable for a case of simply adding DTE to the topology (e.g. to a hub, DCE), which also brings a less trivial case of interconnection of devices of the same type: DTE-DTE or DCE-DCE. Such cases need crossover cables, such as for the Ethernet or null modem for RS-232.

A DTE is the functional unit of a data station that serves as a data source or a data sink and provides for the data communication control function to be performed in accordance with the link protocol.

The data terminal equipment may be a single piece of equipment or an interconnected subsystem of multiple pieces of equipment that perform all the required functions necessary to permit users to communicate. A user interacts with the DTE (e.g. through a human-machine interface), or the DTE may be the user.

Usually, the DTE device is the terminal (or a computer emulating a terminal), and the DCE is a modem or another carrier-owned device.

A general rule is that DCE devices provide the clock signal (internal clocking) and the DTE device synchronizes on the provided clock (external clocking). D-sub connectors follow another rule for pin assignment.

  • 25 pin DTE devices transmit on pin 2 and receive on pin 3.
  • 25 pin DCE devices transmit on pin 3 and receive on pin 2.
  • 9 pin DTE devices transmit on pin 3 and receive on pin 2.
  • 9 pin DCE devices transmit on pin 2 and receive on pin 3.

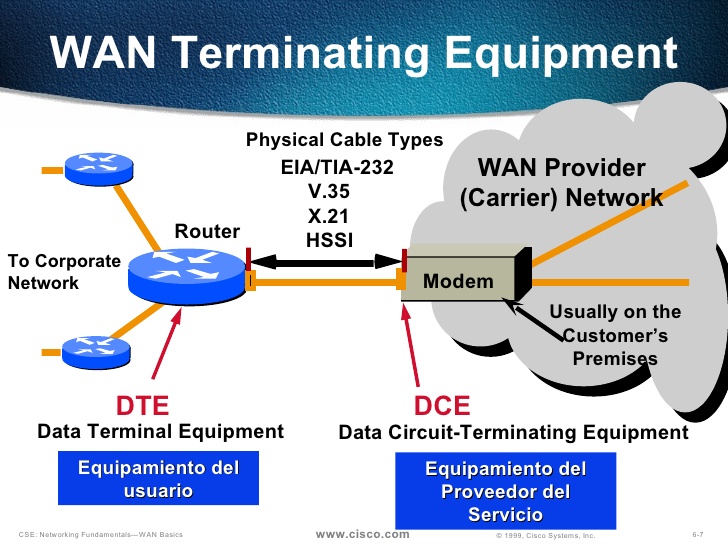

This term is also generally used in the Telco and Cisco equipment context to designate a network device, such as terminals, personal computers but also routers and bridges, that's unable or configured not to generate clock signals. Hence a PC to PC Ethernet connection can also be called a DTE to DTE communication. This communication is done via an Ethernet crossover cable as opposed to a PC to DCE (hub, switch, or bridge) communication which is done via an Ethernet straight cable.
